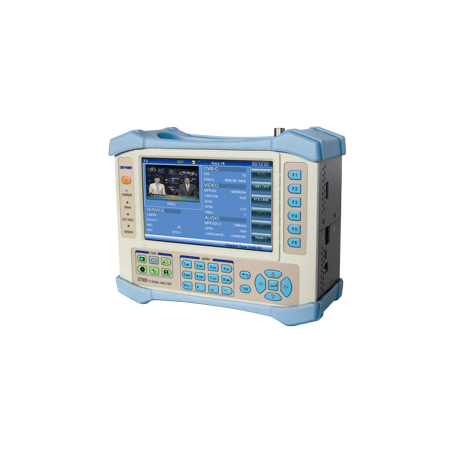

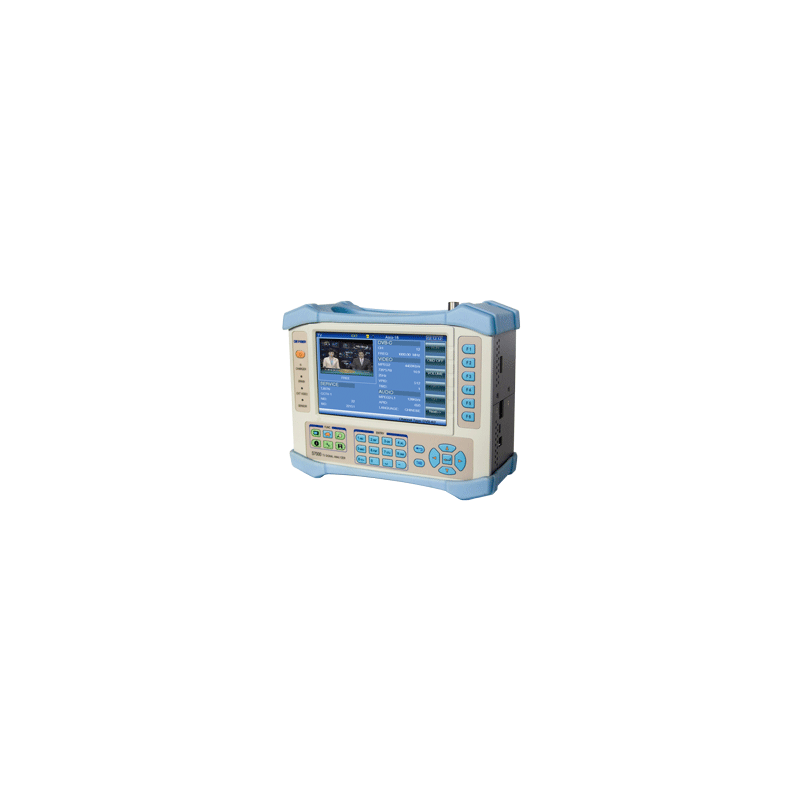

Deviser S7000 TV Analyzer
kr 24,990.00
Inklusive MVA
Fantastisk kombiinstrument fra Deviser. Har alt du trenger av måle muligheter. Les testene i TeleAudiovision her og her.
Datablad kan leses her.
|
All IN ONE
|
|
Digital TV Analyzer : DVB-C/T/H/T2/S/S2|
＊ All standards in one: QAM(J.83A/B/C), 8VSB, DVB-T/H/T2, DVB-S/S2
＊ Digital/Analog TV and Satellite TV analysis
＊ MPEG2 Transport stream analyzer and monitoring via TS-ASI input &RF input
＊ Fast spectrum analysis with 5 ~ 2150 MHz frequency span
＊ DSP Technology to support different Video decoding: MPEG-2 , MPEG-4 and H.264 for 1080i, 720p and 576i, support PAL/NTSC/SECAM color system
＊ Support SD&HD Video format
＊ DVB-CI module (Conditional Access) for encrypted channels
＊ TS-ASI input and output
＊ TS record and TS replay
＊ IPTV analysis option
＊ GPS option
＊ HDMI, LAN and USB interface
＊ Easy to use
＊ High resolution 7" TFT LCD with bright display for indoors and outdoors use
＊ W245×H194×L105, light weight.
＊ Working time >5 hours (battery)
|
|
| Model Guide | |
|
Module |
Configuration |
|
S7000 |
DVB-C/T/H/S/S2/8VSB |
|
Options |
CI/TS analyzer/GPS/DVB-T2/DTMB/IPTV |
TV Monitoring
S7000 provides analog and digital TV monitoring. It supports different video decoding with DSP Technology: MPEG-2, MPEG-4 and H.264 for 1080i, 720p and 576i, and supports PAL/NTSC/SECAM color system. It supports SD&HD video format and CAM module (Conditional Access) for encrypted channels.
S7000 provides analog and digital TV monitoring. It supports different video decoding with DSP Technology: MPEG-2, MPEG-4 and H.264 for 1080i, 720p and 576i, and supports PAL/NTSC/SECAM color system. It supports SD&HD video format and CAM module (Conditional Access) for encrypted channels.
Friendly GUI and Easy to Use
S7000 has windows style main menu. It is very easy to operate the analyzer with navigation keyboard, even without the operate manual.
S7000 has windows style main menu. It is very easy to operate the analyzer with navigation keyboard, even without the operate manual.
Spectrum Measurement
S7000 has spectrum analysis function. The sweep span covers TV& Broadcasting signal(5-1050 MHz) and Satellite IF signal (950-2150 MHz ).
S7000 has spectrum analysis function. The sweep span covers TV& Broadcasting signal(5-1050 MHz) and Satellite IF signal (950-2150 MHz ).
DVB-S/S2 Signal Analysis
S7000 supports DVB-S/S2 standard and provides Power level, MER, BER, constellation measurement.
S7000 supports DVB-S/S2 standard and provides Power level, MER, BER, constellation measurement.
DVB-T/T2 Signal Analysis
DVB-C Signal Analysis
S7000 supports J83 A/B/C/D standard and provides Power level, MER, BER, constellation measurement. The EVS tool is helpful to find the interference signal under the QAM mask.
S7000 supports J83 A/B/C/D standard and provides Power level, MER, BER, constellation measurement. The EVS tool is helpful to find the interference signal under the QAM mask.
Remote Feeding and Control Signal Setting
S7000 provides feeding power 5/13/15/18/21V and Max. power is 5W. The 22 kHz control signals is compatible with DiSEqC 1.2 and SaTCR.
S7000 provides feeding power 5/13/15/18/21V and Max. power is 5W. The 22 kHz control signals is compatible with DiSEqC 1.2 and SaTCR.
TS Analysis and Monitor
S7000 is a handheld TS analyzer. It provides TR101 290 3 level monitoring and list PSI/SI and program PID of transport stream. S7000 also lists the details of all programs running in a TV network or a transponder. The TS is from RF signal or TS-ASI input. S7000 has 8GB hard disk to save TS file and can replay and analysis TS file.
S7000 is a handheld TS analyzer. It provides TR101 290 3 level monitoring and list PSI/SI and program PID of transport stream. S7000 also lists the details of all programs running in a TV network or a transponder. The TS is from RF signal or TS-ASI input. S7000 has 8GB hard disk to save TS file and can replay and analysis TS file.
|
Spectrum Analyzer |
|
|
Frequency Range |
5 MHz ~ 1050 MHz (TV), 950 MHz ~ 2150 MHz (Satellite) |
|
Frequency Span |
1 MHz ~ 1045 MHz (TV), 10 MHz ~ 1200 MHz(Satellite) |
|
Frquency Step |
10 kHz (TV), 1 MHz (Satellite) |
|
Resolution Bandwidth (-3 dB) |
30 kHz, 100 kHz, 300 kHz, 1 MHz, 3 MHz (TV) 1 MHz, 3 MHz Auto Select (Satellite) |
|
Level Measurement Range |
10 dBμV ~ 120 dBμV (TV) 30 dBμV ~ 120 dBμV (Satellite) |
|
Accuracy Of Measurements |
<1.5 dB |
|
Measurement Detector |
Peak, sample, AVG (TV) , No Select for Satellite |
|
Reference Level |
30 dBμV ~ 120 dBμV |
|
Markers |
2 (TV) 1 (Satellite) |
|
Analogue TV Measurement |
|
|
Standards |
B/G, I, D/K, L/L´, M/N |
|
Colour Standards |
PAL, SECAM, NTSC |
|
Frequency Step |
10 kHz |
|
Hum Measurement |
> 50dB |
|
C/N |
> 50dB |
|
Level Measurement Range |
30 dBμV ~ 120 dBμV |
|
Accuracy Of Measurements |
< 1.5 dB |
|
Level Resolution |
0.1 dB |
|
Digital CATV Measurement |
|
|
Modulation Type |
16/32/64/128/256 QAM ITU-T J.83 ANNEX A/B/C |
|
Symbol Rate |
4.0 MS/s ~ 7.0 MS/s |
|
Power Level Range |
30 dBμV ~ 110 dBμV |
|
Level Resolution |
0.1 dB |
|
Power Level Accuarcy |
±1.5 dB(C/N > 20 dB) |
|
MER Measurement |
~40 dB |
|
MER Accuracy |
±2.0 dB |
|
BER |
1E-3 ~ 1E-9 |
|
Constellation |
√ |
|
DVB-T/H Measurement |
|
|
Modulation Type |
QPSK, 16 QAM, 64 QAM |
|
Power Level Range |
25 dBμV ~ 110 dBμV |
|
Level Resolution |
0.1 dB |
|
Power Level Accuarcy |
±1.5 dB (C/N >20 dB) |
|
MER Measurement |
> 30 dB |
|
MER Accuracy |
±2.0 dB |
|
CBER/VBER |
√ |
|
Constellation |
√ |
|
MER Versus Carriers |
√ |
|
Echo Pattern |
√ |
|
DVB-T2 Measurement |
|
|
Modulation Type |
QPSK, 16 QAM, 64 QAM, 256QAM |
|
Power Level Range |
25 dBμV ~ 110dBμV |
|
Level Resolution |
0.1dB |
|
Power Level Accuarcy |
±1.5 dB(C/N >20 dB) |
|
MER Measurement |
>30 dB |
|
MER Accuracy |
±2.0 dB |
|
CBER/LBER |
√ |
|
Constellation |
√ |
|
Echo Pattern |
√ |
|
ATSC Measurement |
|
|
Modulation Type |
8 VSB |
|
Power Level Range |
25 dBμV ~ 110 dBμV |
|
Level Resolution |
0.1 dB |
|
Power Level Accuarcy |
±1.5 dB(C/N >20 dB) |
|
MER Measurement |
>35 dB |
|
MER Accuracy |
±2.0 dB |
|
BER |
√ |
|
Constellation |
√ |
|
DTMB Measurement |
|
|
Carriers |
C=1, 3780 |
|
Power Level Range |
25 dBμV ~ 110 dBμV |
|
Level Resolution |
0.1 dB |
|
Power Level Accuarcy |
±1.5 dB (C/N >20dB) |
|
MER Measurement |
>28 dB |
|
MER Accuracy |
±2.0 dB |
|
BER |
√ |
|
Constellation |
√ |
|
Echo Pattern |
√ |
|
DVB-S/S2 Measurement |
|
|
Modulation Type |
QPSK, 8PSK |
|
Symbol Rate |
2 - 45 MS/s (DVB-S) 1 - 45 MS/s (QPSK DVB-S2) 1 - 45 MS/s (8PSK DVB-S2) |
|
Power Level Range |
40 - 110 dBμV |
|
Level Resolution |
0.1 dB |
|
Power Level Accuarcy |
±1.5 dB (C/N>20dB) |
|
MER Measurement |
> 25 dB |
|
MER Accuracy |
±2.0 dB |
|
BER |
DVB-S (CBER/VBER) DVB-S2 (CBER/LBER) |
|
Constellation |
√ |
|
Video/Audio Decoder |
|
|
Video |
MPEG1/2/4, H.264 |
|
Video Resolution |
1080i, 720p and 576i |
|
Audio |
MPEG1/2/4, AAC |
|
CAM Module |
EN50221 (DVB-CI) PCMCIA interface |
|
TS-ASI Input And Output |
√ |
|
TS Record |
√ |
|
TS Analyzer |
|
|
En 50083-9(DVB SPI, ASI) |
|
|
DVB-ASI Interface |
75 Ω BNC |
|
DVB-ASI Clock |
270 MHz |
|
DVB-ASI Max Data Rate |
0 to 72 Mbps |
|
DVB-ASI Output Signal Level |
1.0 Vp-p nominal |
|
DVB-ASI Return Response |
> 15dB |
|
DVB-ASI Input Level |
800 mV +/- 10% |
|
Realtime Decoder |
Display the real television pictures (through CA system). |
|
TR101290 Monitor |
TR101 290 three levels real time monitor |
|
Base Information |
Count the PIDs percent according to the type of the streams. Videos, Audios, PSI/SI, Null Packages |
|
PID List |
Display all the PIDs in current stream |
|
Program Information |
The detail infos about a program if it isn’t be encrypted. |
|
PCR Monitor |
Calculate PCR interval and PCR accuracy |
|
PSI/SI List |
Display the PSI/SI infos by tree view. Including PAT,PMT,CAT,(NIT,SDT,RST,TDT,EIT options) |
|
Program Info |
EPG |
|
PID Capture |
Capture a specified PID by it’s type: Video, Audio, PSI(PAT,PMT,NIT,TDT,RST,SDT,EIT) etc. And display the data in HEX format |
|
Transport Stream Record and Replay |
<2 GB (udisk) for TS record and TS Replay |
|
Interface |
|
|
RF Input |
75 Ω F |
|
HDMI Output |
|
|
USB |
1 USB 2.0 |
|
LAN |
1 10/100 M |
|
DVB-CI |
1 PCMCIA |
|
TS-ASI Input/Output |
2 75 Ω BNC |
|
DC Supply Input |
12 V / 5 A |
|
GPS Input |
USB |
|
General |
|
|
Display |
7 inches TFT LCD 800 × 480 pixels |
|
AC/DC Adapter |
AC 100 - 240 V/50-60 Hz DC 12 V/5 A |
|
Battery |
Li-ion, 7.4 V/13 Ah |
|
Charge Time |
Around 5 Hours |
|
Working Time |
>5 Hours |
|
Remote Feeding |
5/13/15/18/24 V, Max. 5 W |
|
22 kHz Control Signals |
DiSEqC 1.2 and SaTCR |
|
Dimension (W×H×L) |
245 mm × 194 mm × 105mm |
|
Weight |
Around 2.8 kg |
|
Working Temperature |
-10 ~ +50 ℃ |
|
Storage Temperature |
-20 ~ +70 ℃ |
