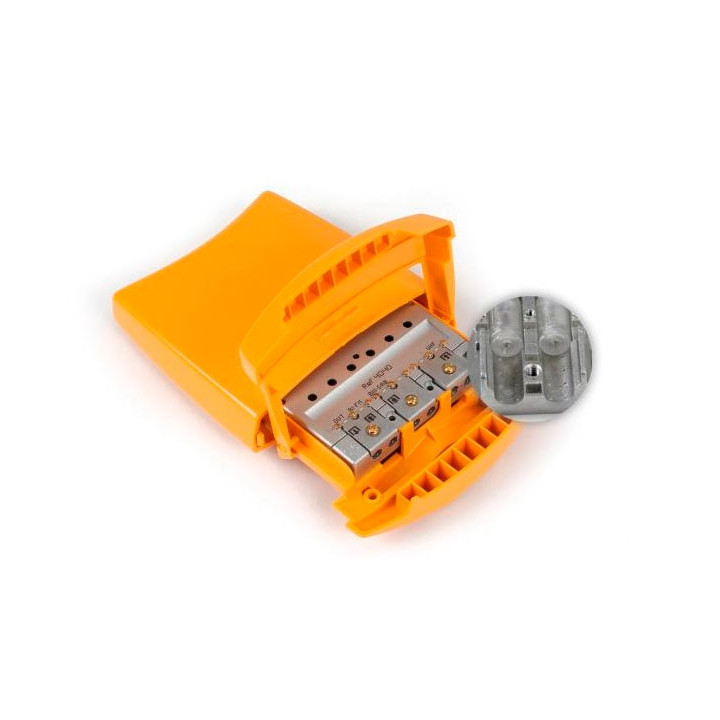

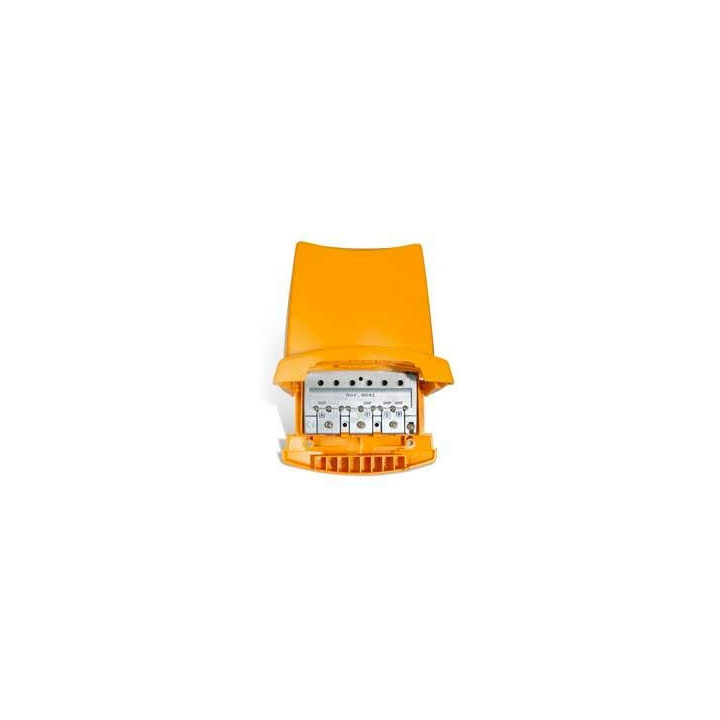

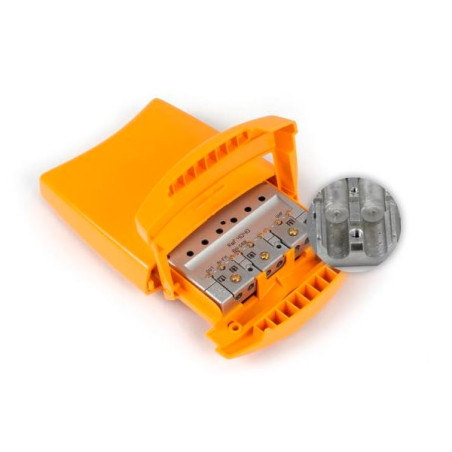

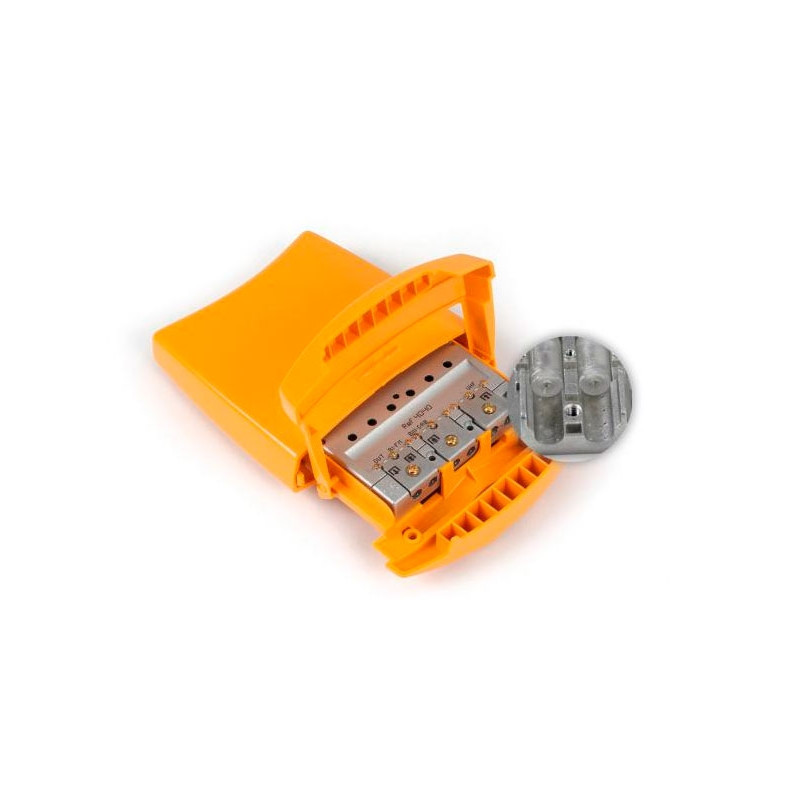

VHF-UHF[dc]-UHF
kr 0.00
Inklusive MVA
Passive devices for mixing signals coming from different antennas and characterized by:
- Low insertion losses.
- EasyF connection system.
- Being housed in a weather proof box made of ABS plastic. Should be installed indoor, their diecast chassis features the holes that allow for wall mounting
| Reference | 4041 | |||
| Frequency range | MHz | VHF 47-254 |
UHF1 470-862 |
UHF2 470-862 |
| Insertion losses | dB | 1 | 5 | |
| Rejection bet. inputs | >40 (VHF-UHF) >18 (UHF1-UHF2) |
|||
| DC pass (max.) | mA | - | 100 | - |
| Dimensions (Wid x Hei x Dep) | mm | 126 x 136 x 41 | ||
| Protection index | IP | 23 | ||
